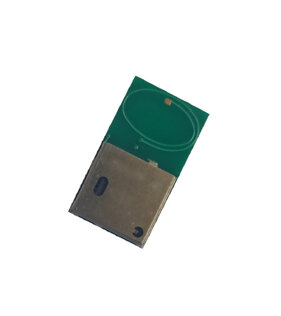

CC1101 module
CC1101 module
CC1101 module SMT

© 2021 RadioControlli S.r.l.  VAT IT03939360610 All right reserved.

Model: RC-CC1101-SPI-868

Description:

Transceiver module CC1101 based - THT version.



Vdc:  1.8 ÷ 3.6Volt

Current: 6.8mA

Frequency: 868MHz

Sensibility: -112dBm

Power RF: +10dBm

Dimension:  21.5 x 15.6mm

Model: RC-CC1101-SPI-SMT-868

Description:

Transceiver module CC1101 based - THT version.



Vdc:  1.8 ÷ 3.6Volt

Current: 6.8mA

Frequency: 868MHz

Sensibility: -112dBm

Power RF: +10dBm

Dimension:  18 x 15mm

Model: RC-CC1101-SPI-434

Description:

Transceiver module CC1101 based - THT version.



Vdc:  1.8 ÷ 3.6Volt

Current: 6.8mA

Frequency: 433MHz

Sensibility: -112dBm

Power RF: +10dBm

Dimension:  21.5 x 15.6mm

New

New

New

CC1101 module SMT
RCS1KSMT-868
CC1101 module SMT

Model: RCS1KSMT-434

Description:

Transceiver Module Si1000 based - SMT version.





Vdc: 2.2 ÷ 3.6Volt

Current: 20/34mA

Frequency: 433MHz

Powe : +20dBm

Dimension: 23.52 x 15mm



Model: RC-CC1101-SPI-SMT-434

Description:

Transceiver module CC1101 based - THT version.



Vdc:  1.8 ÷ 3.6Volt

Current: 6.8mA

Frequency: 434MHz

Sensibility: -112dBm

Power RF: +10dBm

Dimension:  18 x 15mm



Model: RC-CC1101-SPI-SMT-915

Description:

Transceiver module CC1101 based - THT version.



Vdc:  1.8 ÷ 3.6Volt

Current: 6.8mA

Frequency: 915MHz

Sensibility: -112dBm

Power RF: +10dBm

Dimension:  18 x 15mm



Lorem ipsum dolor sit amet, consectetur adipisicing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.
RCS1KSMT-434
RC-SPIRIT1-868

Model: RC-SPIRIT1-868

Description:

Transceiver module based on STMicroelectronics SPIRIT1 transceiver.





Vdc:  1.8 ÷ 3.6Volt

Current: 9/22mA

Frequency: 868MHz

Sensibility: -118dBm

Power RF: +16dBm

Dimension:  22 x 15mm



Model: RCS1KSMT-868

Description:

Transceiver Module Si1000 based - SMT version.





Vdc: 2.2 ÷ 3.6Volt

Current: 20/34mA

Frequency: 868MHz

Powe : +20dBm

Dimension: 23.52 x 15mm



rctask2

Model: RC-TASK2-868

Description:

ASK/OOK transmitter module with Crystal oscillator.



Vdc: 2.2 ÷ 3.6Volt

Current:  21/15mA

Frequency: 868.30MHz​

Power : 10dBm

Dimension: 20.32 x 11.43mm
