Module Information
Model: RC-TASK2-868
Description:
ASK/OOK transmitter module with Crystal oscillator.
Vdc: 2.2 ÷ 3.6Volt
Current: 21/15mA
Frequency: 868.30MHz
Power : 10dBm
Dimension: 20.32 x 11.43mm
Model: RC-TFSK3-434
Description:
433.92MHz FSK Radio Transmitter Module - Standard Pinout .
Vdc: 2.4 ÷ 3.6Volt
Current: 14.5m
Frequency: 433.92MHz
Powe : 10dBm
Dimension: 20.32 x 11.43mm
Model: RC-TFSK4-434
Description :
433.92MHz FSK Transmitter Module - Standard Pinout.
Vdc: 2.4 ÷ 3.6Volt
Current: 14.5mA
Frequency: 433.92MHz
Power : 10dBm
Dimension: 30.5 x 10.3mm
Reference Schematics
New
New
Download catalog
Follow us on :
Phone : +39 0823 522185
Mobile : +39 333 4156216
sales@radiocontrolli.com
Via Santagata 73
Centro Direzionale Contemporanea
81055 Santa Maria C.V. (CE)
ITALY
. RX
© 2021 RadioControlli S.r.l. VAT IT03939360610 All right reserved.
RC-RFSK5-433

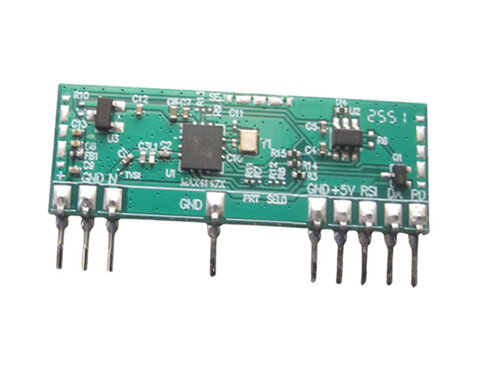

RC-RFSK5-433 FSK Radio Receiver
RC-RFSK5-433 is an FSK Radio Receiver Module with PLL Synthesizer and crystal oscillator for 433.92MHz ISM band.
· High Sensitivity (-112dBm typical)
· Carrier Detect (CD) output suitable for wake-up / squelch
· Compact Single inline Package
Datasheet
| Technical Characteristics | Min | Typ | Max | Unit |
| Supply Voltage | 4.50 | | 5.50 | Volt |
| Current Consumption (Tx Mode) | | 9.0 | | mA |
| Currente Consumption (Standby Mode) | | | 10 | nA |
| Frequency | | 433.92 | | MHz |
| Max Data Rate | | | 2.55 | Kbit/s |
| RF Sensitivity | | -1128 | | dBm |
| 3dB Bandwidth | | 170 | | KHz |
| Operating Temperature Range | -25 | | 70 | °C |
Pin Outs
Mechanical Dimension

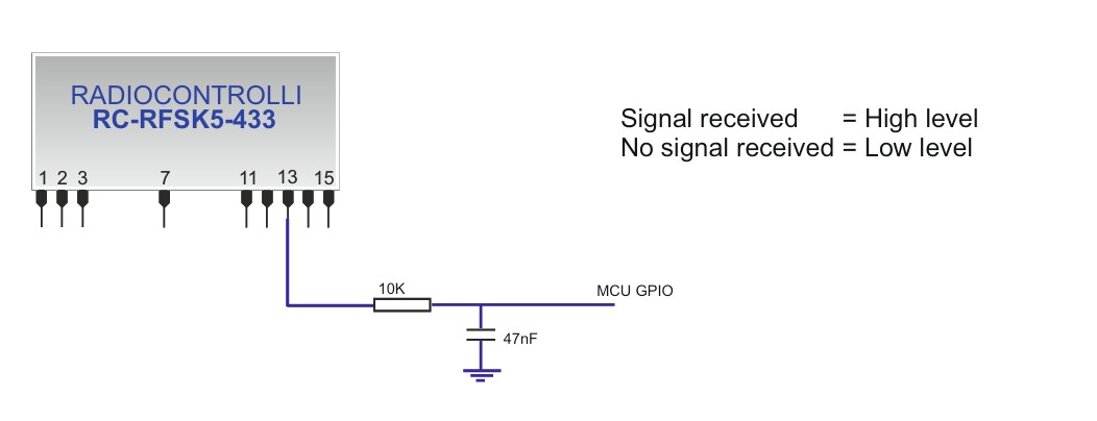

Carrier Detector PIN (pin 13) - Recommended External Filter
The Carrier Detector pin, filtered with an external RC network, provides a digital carrier-detect signal suitable for wake-up and squelch functions
