Lora Wireless Module STM32WLE5JC based



RC-WLE5-868 is an ultra low power long range device designed by RadioControlli.  The module is based on STM32WLE5JC device from STMicroelectronics.
Multiprotocol LPWAN 32bit Arm®Cortex® M4 MCUs, LoRa®, (G)FSK,

(G)MSK, BPSK .
The main applications of this module are Internet of Things devices and wireless sensor networks , especially battery powered low power consumption  long range.



CORE : STM32WLE5JC
Operative Frequency bands : 868MHz.

Ready for use  SMD mounting (13 x 14.5mm) - Metal shield.

For more information and details, please refer to the STM32WLE5JC datasheet (www.st.com).

Datasheet

undefined
undefined
undefined
undefined

​RadioControlli is an STMicroelectronics Authorized Partner

RC-WLE5-868

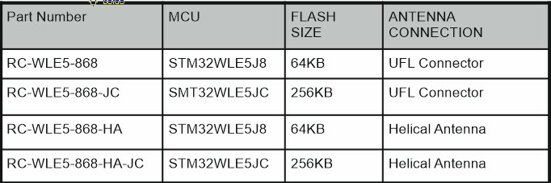

Module Information

RC-WLE5-868 ------> Standard Version  UFL connector













RC-WLE5-868-HA  ------> Helical Antenna version

RC-WLE5-868-HA

RC-WLE5-868 is designed to be easily integrated into your hardware application, we provide 2 versions:

1) Standard version with UFL connector
    You can use the UFL connector where you can directly connect the antenna. The RF output signal is also present on a 50 ohm pin (pin 15) in case you

     want to create your own antenna project on your pcb.



2) Version with helical antenna (full version)

BLOCK DIAGRAM

RC-WLE5-868 Block diagram

Ta = 25°C unless otherwise specified

Technical Characteristics
Min
Typ
Max
Unit
Supply Voltage
2.5
3.3
3.7
Volt
Current Consumption (Sleep  Mode)
2.0
uA
Current Consumption (RX Mode)
5.0
mA
Current Consumption (TX Mode)
120
mA
Frequency Band
868
MHz
RF Output Power  50ohm
+18.50
dBm
RF Sensitivity
-140
dBm
Operating Range Temperature
-20
70
°C

For more information and details consult the datasheet of the STM32WLE5JC  chip from STMicroelectronics

PIN OUT

RC-WLE5-XXX schematics
RC-WLE5-868 graphics

Mechanical Dimension

tolerance ±0.5mm

undefined
SPSGRFC schematics

REFERENCE SCHEMATICS

RC-WLE5-868 Application
